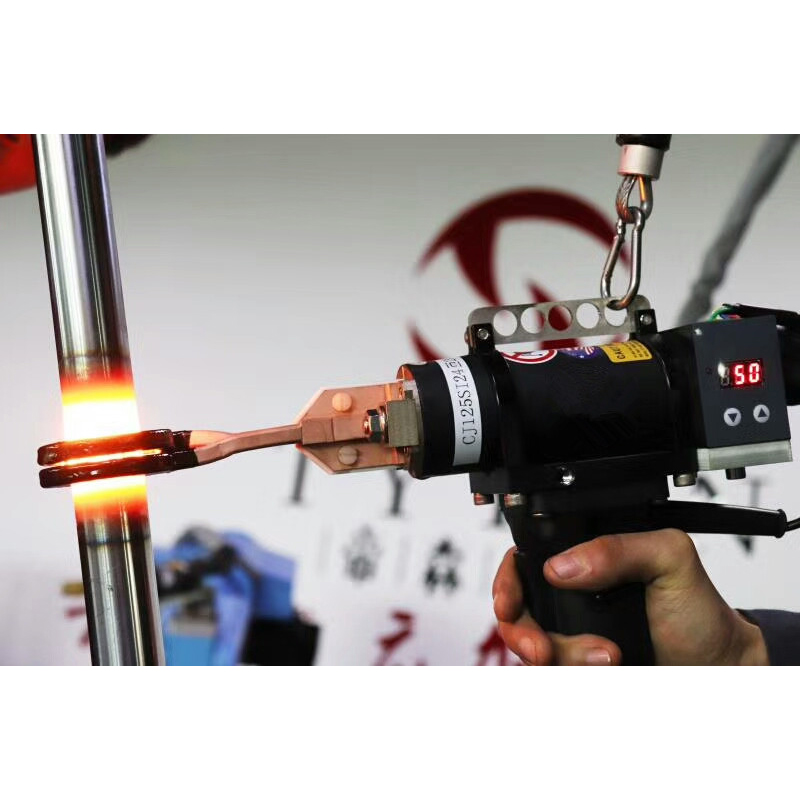

HHF-15kW Portable Hand-held Induction Heating Machine for Brazing
Quantity
-
+
Inquiry

HHF-15kW Portable Hand-held Induction Heating Machine for Brazing

    HHF-15KW Handheld Induction Heating Machine:

    1. Input Voltage: 220V, 50/60HZ

    2. Working Voltage: 340 ~ 420V

    3. Output Power: 1 ~ 15kW

    4. Output Frequency: 10 ~ 80KHZ

    5. Input Current: 1 ~ 50A

    6. Size: 650 x 350 x 650 mm

    7. Weight: 35kg

    Application:

    * Brazing

    * Forging

    * Hardening Tempering

    * Annealing Quenching

    * Melting

    * Other heating treatment

Other induction heating machine model:

Features:

* Model: 15kW, 25kW, 35kW 45kW, 60kW, 80kW, 120kW, 160kW

* IGBT Type

* Frequency: 30 ~ 100KHZ

* 24 Hour continuous work

* Voltage & current full display. Adjust heating, Holding time

* Easy to operate and more stable

* Design different type induction coil

Model HHF-15kW HHF-25kW HHF-35kW HHF-45kW HHF-60kW HHF-80kW HHF-120kW HHF-160kW
Input Voltage 3 x 380V, 50/60HZ 3 x 380V, 50/60HZ
Input Current 1 ~ 20A 1 ~ 30A 1 ~ 45A 1 ~ 60A 1 ~ 90A 1 ~ 120A 1 ~ 180A 1 ~ 240A
Output Power 1~15kW 1~25kW 1~35kW 1~45kW 1~60kW 1~80kW 1~120kW 1~160kW
Output Frequency 30~100KHZ 10~100KHZ
Power Duty 100% duty output Power 100% duty output Power
Cooling Water >0.2 Mpa > 6L/Min >0.2 Mpa > 6L/Min
Water Temperature < 45 C < 45 C
Weight 35kg 40kg 50kg 60kg 95kg 120kg 150kg 200kg
Induction coil 2 2 2 2 2 2 2 2

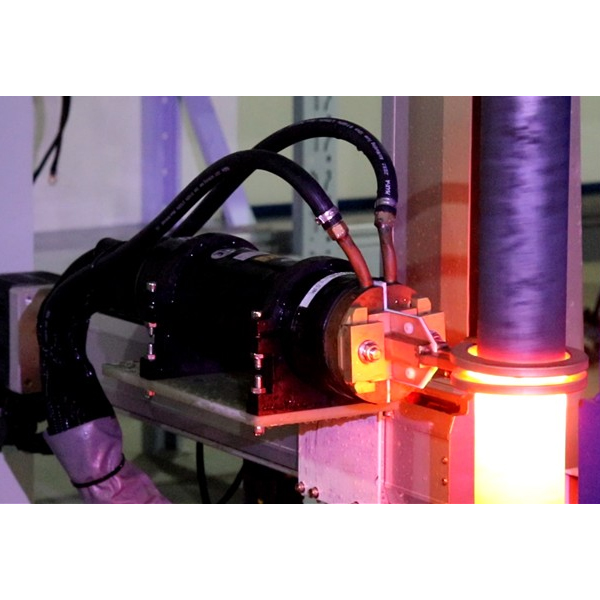

Application Picture:

  • Induction Forging:

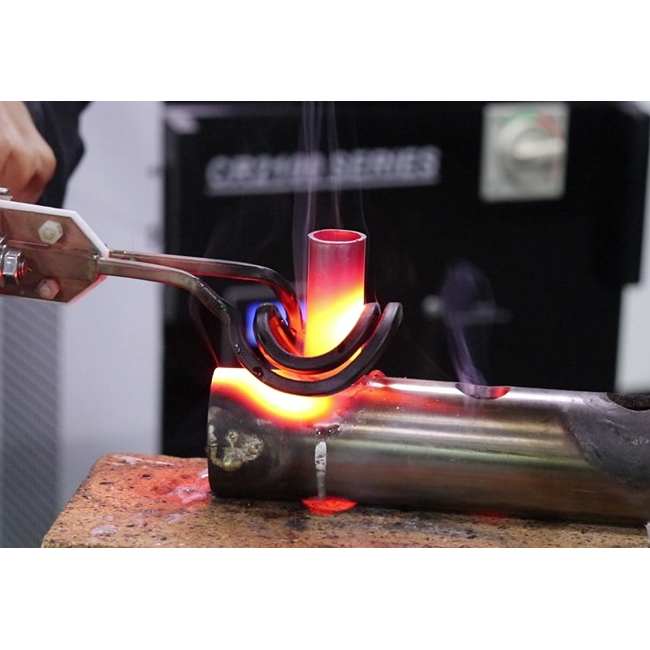

  • Induction Brazing:

  • Induction Annealing:

  • Induction Hardening:

  • Induction Melting:

The System Include:

1. Induction Heating Power

2. Induction Transformer

3. Induction Coil

4. Water Cooling system (Chosen Part)

5. Manual and other part

Application Picture:

● Heat treatment for various hardware and tools, such as plier, wrench, hammer, ax, screwing tools and shear.

● Heat treatment for various automobile and motorcycle fittings, such as crankshaft, connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft, semi drive shaft, small shaft and fork.

● Heat treatment for various electric tools, such as gear and axes.

● Heat treatment for machine tools, such as lathe deck and guide rail.

● Hardening for various hardware metal parts and machined parts, such as shaft, gear chain wheel, cam, chuck and clamp etc.

● Heating for hardware molds, such as small-size mold, mold accessory and inner hole of mold.

● Annealing of various stainless steel products, such as stainless steel basin, annealed and extruded can, annealed folded edge, annealed sink, stainless steel tube, tableware and cup.

● Forging of various other metal work pieces, such as round steel, sheet/plate, pipe and others.

Contact us for more details.
