Natural Gas/Oil Fired Melting Furnace
Quantity
-
+

Natural Gas/Oil Fired Melting Furnace

    Application:

    Aluminum, Copper, Brass, Bronze, Lead, Zinc melting furnace

    Fuel:

    Natural gas

    LPG Gas

    Oil and so on

    Features:

    * Model: GFT-100KG, 200KG, 500KG, 1000KG, 1500KG, 2000KG

    * Natural gas/oil fired type aluminum melting furnace

    * Max Heating Temperatrure: Aluminum 950°C Copper 1350°C

    * 24 Hour counitinous work and easy to operate and more stable

    * Design different type capacity melting furnace

Main technical parameters:

Model GFT-100Kg GFT-200Kg GFT-500Kg GFT-1000Kg GFT-1500Kg
Melting capacity 100Kg 200Kg 500Kg 1000Kg 1500Kg
Tilting Electrical Motor tilt Hydraulic Tilting
Burner (1000Kcal/H) 10 15 30 100 150
aluminum loss rate % Less than 3%
Heating Temperature Aluminum 950°C - Copper 1350°C
Natural Gas cost 80 m³ gas per ton Aluminum melting
Melting Time 1.5 ~ 2 hours
Crucible SIC Crucible

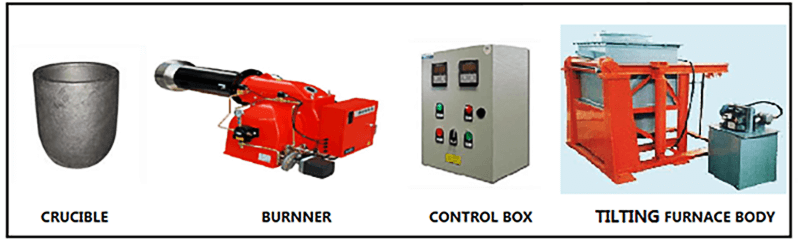

The System Include:

Application:

* Use gas (light diesel fuel) for fuel, clean and safe, clean and tidy, easy to manage.

* High thermal efficiency, low operation cost and electric heating crucible furnace in melting capacity, high efficiency, low energy consumption, completely eliminates the replacement cost of electrothermal body.

* Use imported international brands burner.

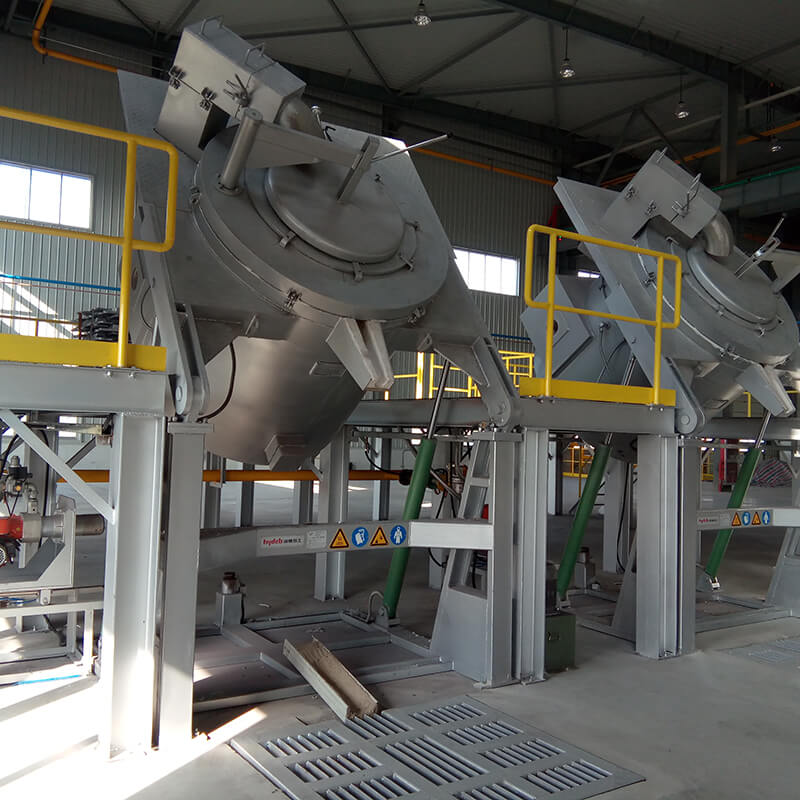

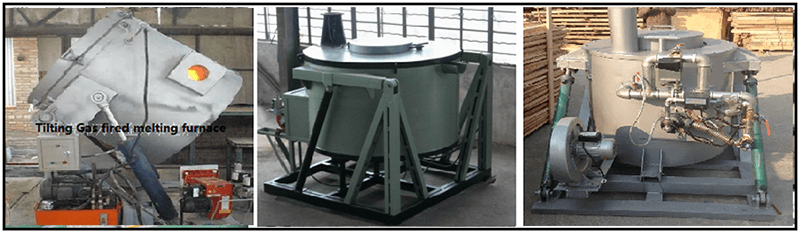

* Electrical Tilting or Hydraulic tilting furnace body.

* Gas can save 30% compare with electrical power. More energy saving.

* Melting time is short, improve the working efficiency.

* Using double temperature control, automatic temperature control, automatic melting, automatic heat preservation.

* Furnace bottom is provided with safety door, Leaky furnace alarm.

* Can impore the purty of the melting aluminum.

* The lost aluminum is less than 3%. Save alumimum.

* Good Quality and longtime furnace working.
