Supply 2 Ton Hot Air Cupola Furnace for Casting

Quantity

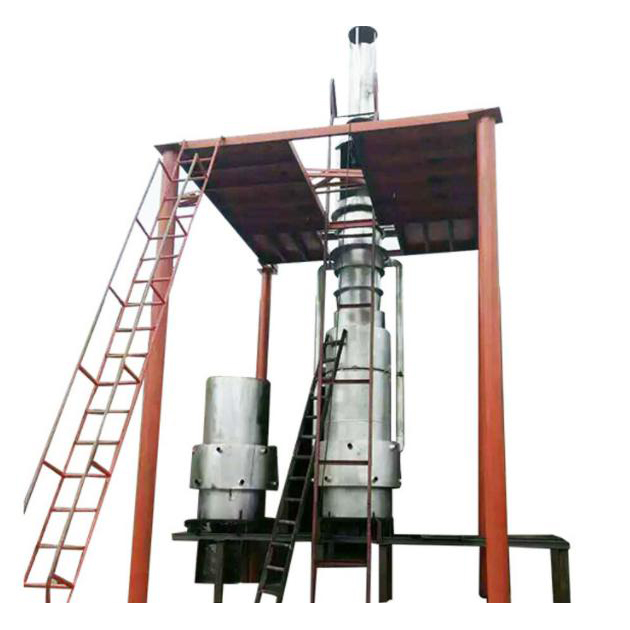

2 Ton Hot Air Cupola Furnace

* Pig iron melting

* Lead zinc copper Melting

* Battery Lead Recovery

Coke

* Model: 1T 2T 3T 5T 7T 10T

* Hot air cupola furnace for melting and casting

* Max Heating Temperature: 1550 ℃

* 8~10 Hours working per day

* Design metal melting with good quality & heat effect

Main technical parameters:

Model	YTCF-1	YTCF-2	YTCF-3	YTCF-5	YTCF-7	YTCF-10
Melt Capacity	1 T/H	2 T/H	3 T/H	5 T/H	7 T/H	10 T/H
Air Capacity	20 m³/min	40 m³/min	60m³/min	80 m³/min	120 m³/min	160 m³/min
Air pressure	16 Kpa	17 Kpa	18Kpa	35Kpa	35Kpa	35Kpa
Effect Height	4200 mm	4800 mm	5200mm	5800mm	6500mm	7200mm
Bottom coke height	1300 mm	1400 mm	1400 mm	1500 mm	1600 mm	1700 mm
Hot air temperature	> 350 ℃
Coke Consumption	1:8 ~ 1:10 1000 kg iron need 100~ 125 kg coke
Melting Temperature	1460-1550 ℃

The System Include:

Furnace body

Feeding system

Blow Fan - Air supply system

Chosen Part:

Insulation material

Dust/Smoke Remove system

Cupola Furnace:

◆ Cupola furnace is a melting device used to melt cast iron, bronze, and other alloying elements. It is mainly used to convert iron to cast iron.

◆ Cupola furnace is cylindrical in shape, and the equipment of this furnace is fitted vertically inside this cylindrical shell with a door.

◆ Cupola furnace was used to melt iron in iron castings as it produces a better cast iron than pig iron.

◆ The cupola furnace shell is made of steel and consists of refractory brick and plastic refractory patching materials.

Advantage of the cupola furnace

Simple in Construction.

Wide range of materials can be melted.

Less floor space is required.

Very skilled operators are not required.

Easily operated by low-skilled people.

Low cost of operation.

Low cost of maintenance.

Low cost of construction.
