High Frequency Induction Heating Machine 45kW
Quantity
-
+
Inquiry

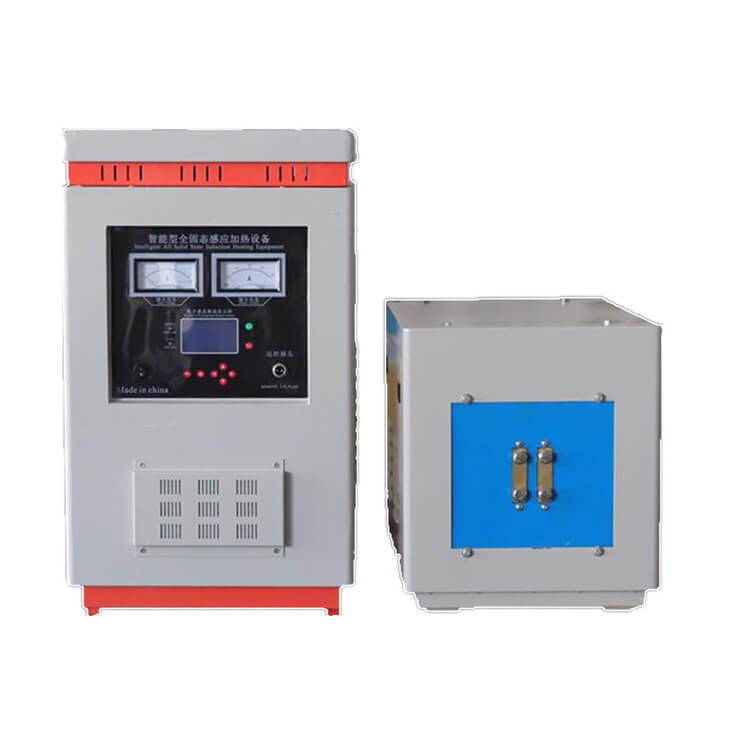

45kW High Frequency Induction Heating Machine HF-45kW

    HF-45kW Induction Heating Machine:

    1. Input Voltage: 3 x 380V, 50/60HZ

    2. Working Voltage: 340 ~ 420V

    3. Output Power: 1 ~ 35kW

    4. Output Frequency: 10 ~ 80KHZ

    5. Input Current: 1 ~ 70A

    6. Size: 650 x 350 x 650 mm, 600 x 350 x 450 mm

    7. Weight: 70kg

    Application:

    * Brazing

    * Forging

    * Hardening Tempering

    * Annealing Quenching

    * Melting

    * Other heating treatment

OTHER INDUCTION HEATING MACHINE MODEL:

Features:

* Model: 15kW, 25kW, 35kW 45kW, 60kW, 80kW, 120kW, 160kW

* IGBT Type

* Frequency: 30 ~ 100KHZ

* 24 Hour continuous work

* Voltage & current full display. Adjust heating, Holding time

* Easy to operate and more stable

* Design different type induction coil

Model HF-15kW HF-25kW HF-35kW HF-45kW HF-60kW HF-80kW HF-120kW HF-160kW
Input Voltage 220V 3 x 380V, 50/60HZ 3 x 380V, 50/60HZ
Input Current 20A 30A 50A 65A 90A 120A 200A 265A
Output Power 1~15kW 1~25kW 1~35kW 1~45kW 1~60kW 1~80kW 1~120kW 1~160kW
Output Frequency 10~80KHZ 10~50KHZ 10~5KHZ
Cooling Water 0.2 Mpa 2 ~ 6 L/Min 0.2 Mpa 4 ~ 8 L/Min 0.2 Mpa 4 ~ 10 L/Min 0.2 Mpa 5-12 L/Min
Cable Length 1 ~ 5 meters
Size (cm) 48 x 21 x 44 59 x 24 x 48 65 x 26 x 52
58 x 28 x 48		 69 x 31 x 52
58 x 28 x 48		 75 x 55 x 80
60 x 50 x 55		 75 x 55 x 80
60 x 50 x 55		 75 x 55 x 120
70 x 55 x 60		 75 x 55 x 120
70 x 55 x 60
Weight 22kg 30kg 60kg 70kg 80kg 100kg 120kg 140kg

Application Picture:

  • Induction Forging:

  • Induction Brazing:

  • Induction Annealing:

  • Induction Hardening:

  • Induction Melting:

The System Include:

1. Induction Heating Power

2. Induction Transformer

3. Induction Coil

4. Water Cooling system (Chosen Part)

5. Manual and other part

Application Picture:

● Heat treatment for various hardware and tools, such as plier, wrench, hammer, ax, screwing tools and shear.

● Heat treatment for various automobile and motorcycle fittings, such as crankshaft, connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft, semi drive shaft, small shaft and fork.

● Heat treatment for various electric tools, such as gear and axes.

● Heat treatment for machine tools, such as lathe deck and guide rail.

● Hardening for various hardware metal parts and machined parts, such as shaft, gear chain wheel, cam, chuck and clamp etc.

● Heating for hardware molds, such as small-size mold, mold accessory and inner hole of mold.

● Annealing of various stainless steel products, such as stainless steel basin, annealed and extruded can, annealed folded edge, annealed sink, stainless steel tube, tableware and cup.

● Forging of various other metal work pieces, such as round steel, sheet/plate, pipe and others.

Contact us for more details.
