Tilting Type 200kg Gas Fired Aluminum Melting Furnace
Quantity
-
+

200kg Natural Gas Fired Tilting Melting Furnace -- Hydraulic Tilting Type

    Application:

    Aluminum melting

    Brass melting

    Fuel:

    Natural gas

    LPG Gas

    Oil and so on

    Features:

    * Model: GFT-100KG, 200KG, 500KG, 1000 kg, 1500KG, 2000KG

    * Natural gas/oil fired type aluminum melting furnace

    * Max Heating Temperature: Aluminum 950 C; Copper 1350 C

    * 24 Hour continuous work and easy to operate and more stable

    * Design different type capacity melting furnace

    * Aluminum scrap melting for casting

Main technical parameters:

Model YTFT-100 YTFT-200 YTFT-500 YTFT-1000 YTFT-1500
Melt capacity 100kg 200kg 500kg 1000kg 1500kg
Tilting Electrical Motor tiltHydraulic Tilting
Burner (1000Kcal/H) 10 15 30 100 150
Aluminium loss rate % Less than 3%
Heating Temperature Aluminum 950 C - Copper 1350 C
Natural Gas cost 80 m³ gas per ton Aluminum melting
Melting Time 1.5 ~ 2 hours
Crucible SIC Crucible

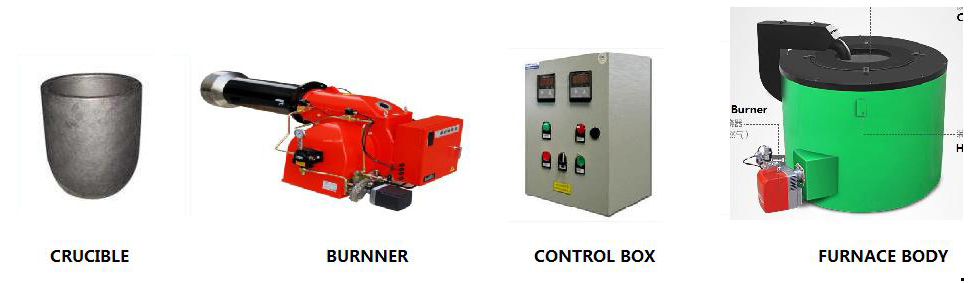

The System Include:

Application:

Use gas (light diesel fuel) for fuel, clean and safe, clean and tidy, easy to manage.

High thermal efficiency, low operation cost and electric heating crucible furnace in melting capacity, high efficiency, low energy consumption, completely eliminates the replacement cost of electrothermal body.

Use imported international brands burner.

Electrical Tilting or Hydraulic tilting furnace body.

Gas can save 30% compare with electrical power. More energy saving.

Melting time is short, improve the working efficiency.

Using double temperature control, automatic temperature control, automatic melting, automatic heat preservation.

Furnace bottom is provided with safety door, Leaky furnace alarm.

Can improve the purity of the melting aluminum.

The lost aluminum is less than 3%. Save aluminum.

Good Quality and longtime furnace working.

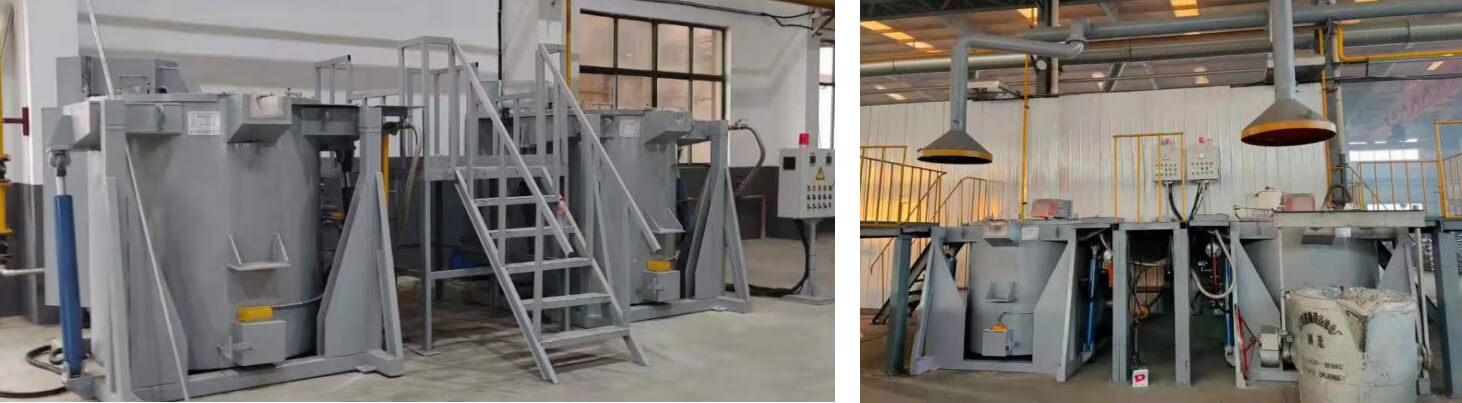

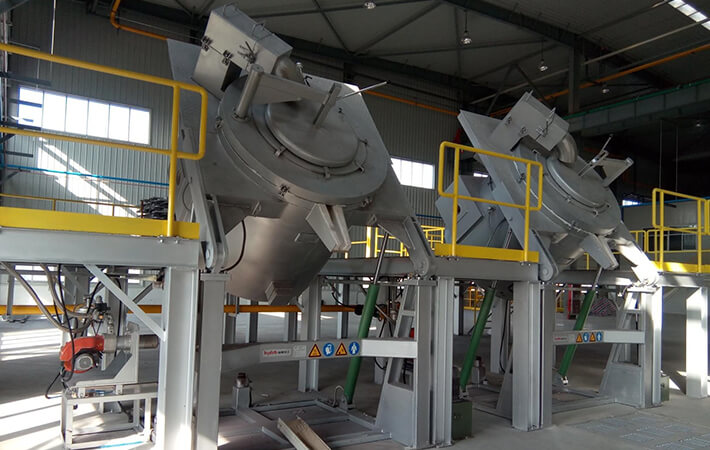

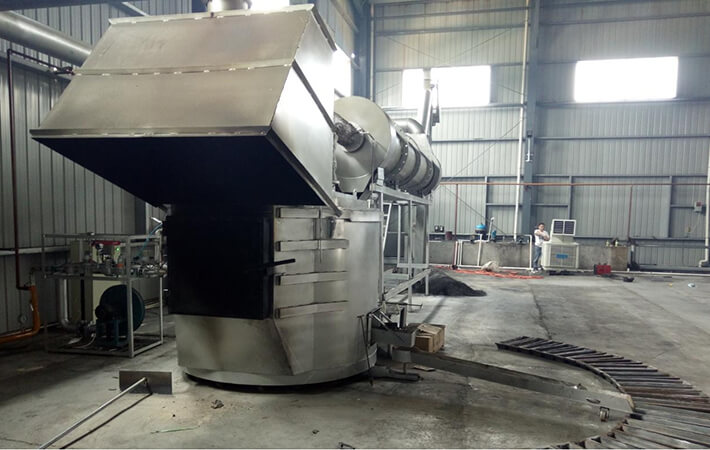

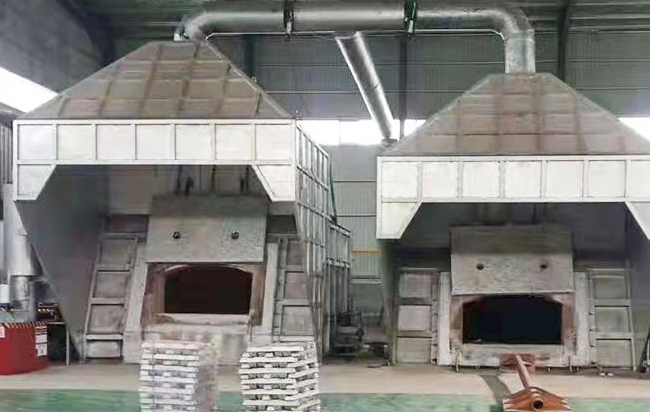

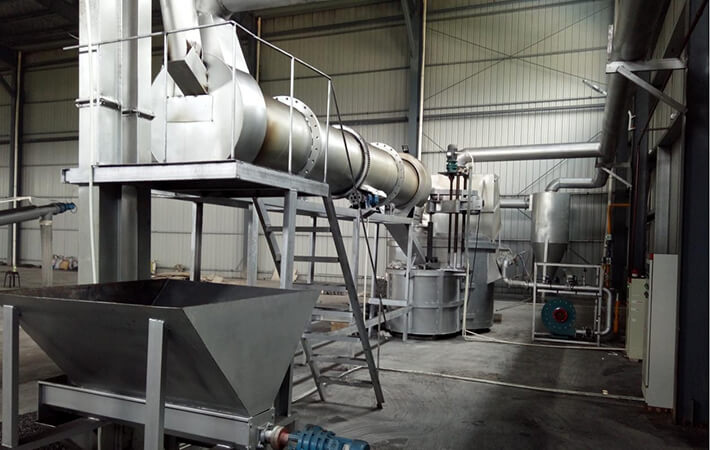

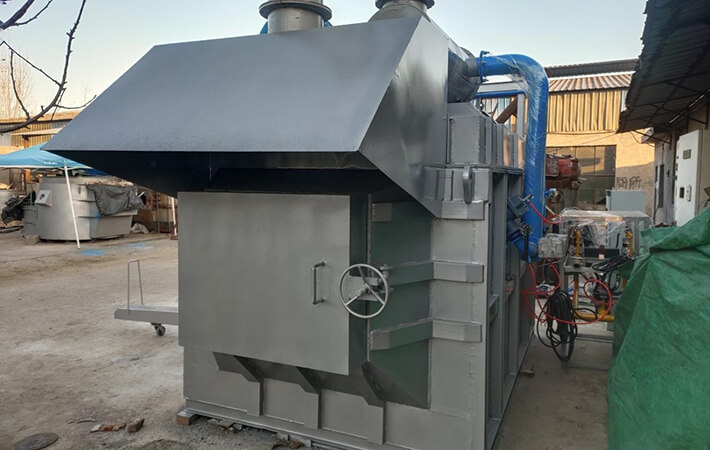

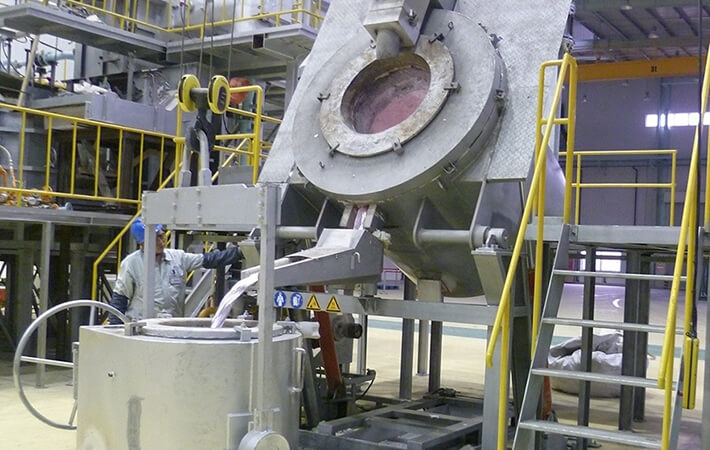

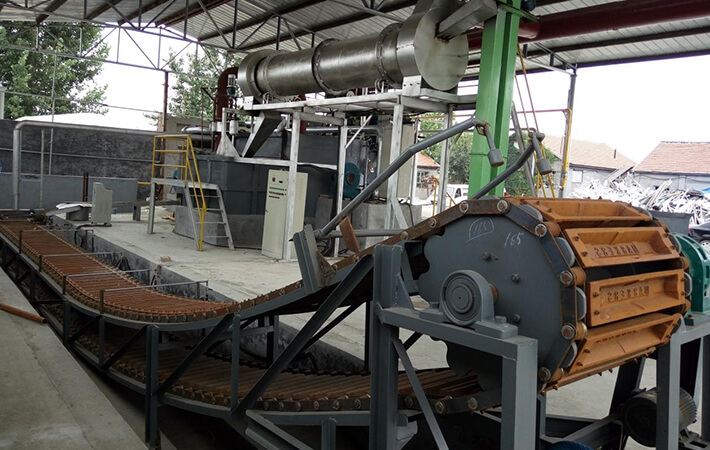

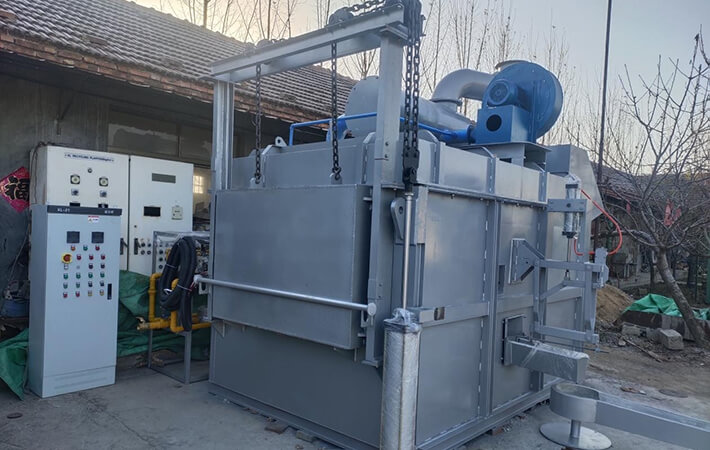

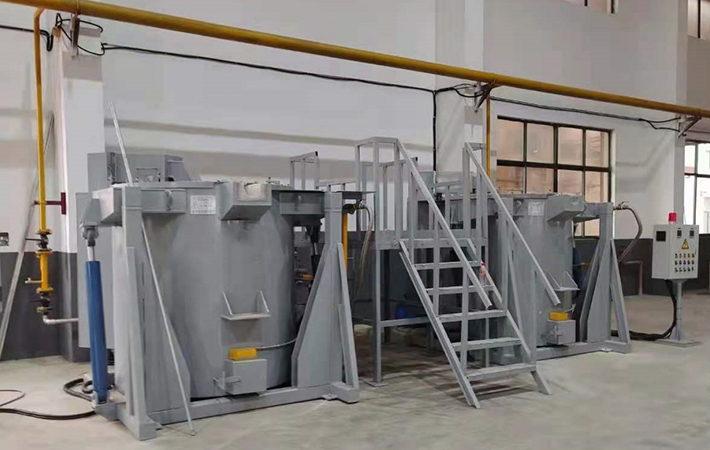

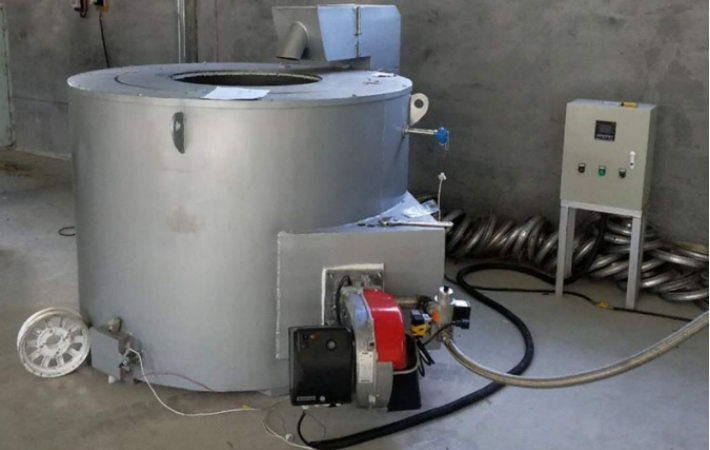

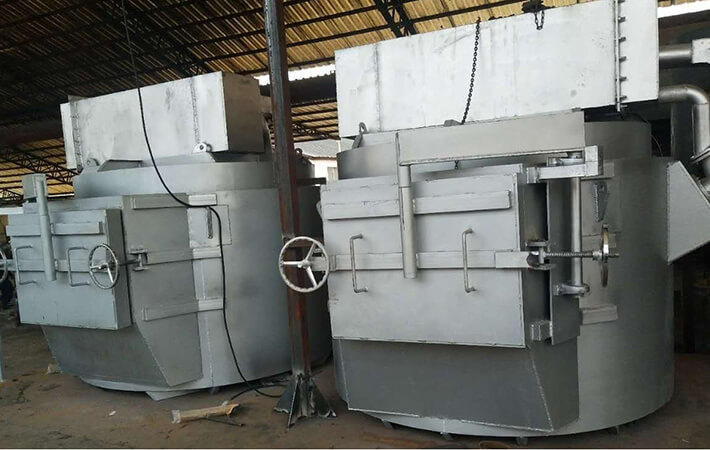

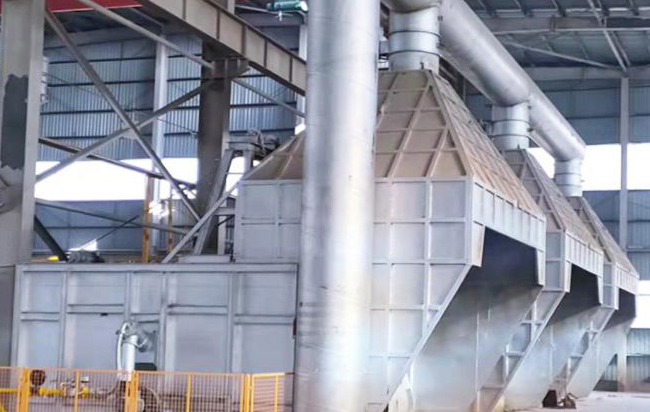

Gas Fired Melting Furnace for Reference:
